CPU

Octa-core 2.0 GHz Qualcomm

OS

Android 11 / Android 14

Memory

4GB RAM + 64GB ROM

External Storage

Up to 128GB supported

Interface & Communication

Waterproof Type-C USB; USB 2.0 High-Speed; OTG; Type-C headset supported; Nano SIM/TF card (triple-slot dual use)

Buttons

Volume +/-; Power; Left scan; Right scan; Custom key; Virtual keys (Back, Home, Menu)

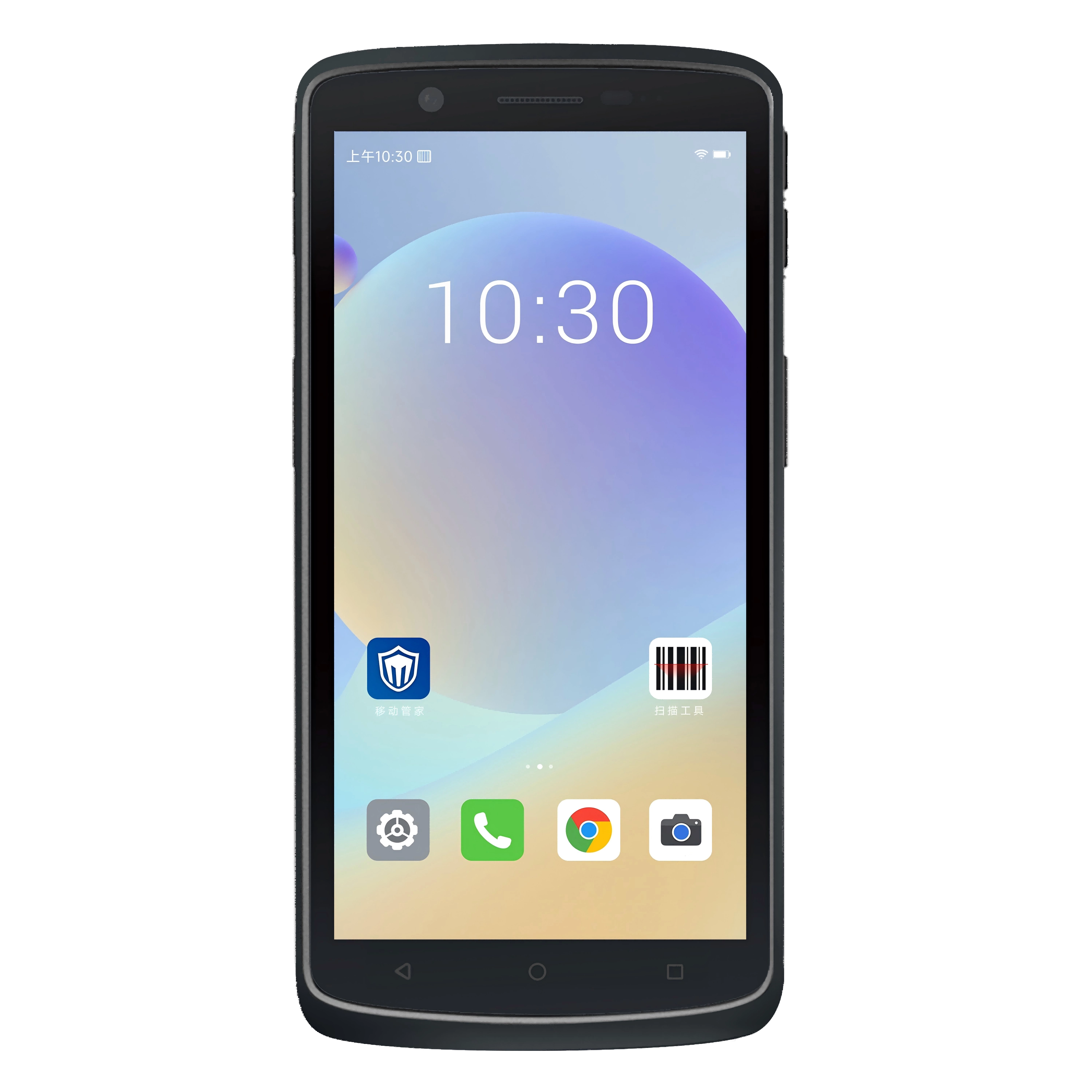

Display

5.5-inch capacitive touch screen; 720*1440 resolution; Wet-hand & glove mode supported

Main Battery

Removable 5000mAh Li-ion; Compatible with 6000mAh Li-ion

Backup Battery

40mAh Li-ion (optional)

Notification

Sound, vibration, LED indicator

Audio

Bottom single speaker; Dual noise-canceling microphones

Sensors

G-sensor, Light sensor, Proximity sensor

Dimensions

156(H)×76(W)×13.9mm(T) (5000mAh)
156(H)×76(W)×16.4mm(T) (6000mAh)

Weight

255g (5000mAh with battery)
279g (6000mAh with battery)

Operating Temp

-20°C to +50°C

Storage Temp

-40°C to +70°C

Humidity

5% to 95% RH, non-condensing

Ingress Protection

IP68

Drop Resistance

1.5m to marble

Impact Resistance

1000 rolls (0.5m) = 2000 impacts

ESD

±15kV air discharge; ±8kV contact discharge

Resolution

1280 x 1080 pixels

FOV

H 39.6°, V 33.8°

Laser Class

Class II

Rotation

360°

Tilt

±60°

Skew

±55°

Depth of Field

Code128 3mil: 13–20cm
Code128 20mil: 5–80cm

Supported Codes

1D: UPC/EAN, Code128, GS1-128, Code39, Code32, Code93, Code11, 2of5, Codabar, MSI
2D: PDF417, Data Matrix, QR, Aztec, etc.

Resolution

1280 x 1080 pixels

FOV

H 40.2°, V 46.9°

Laser Class

Class II

Rotation

360°

Tilt

±60°

Skew

±55°

Depth of Field

Code128 5mil: 15–24cm
Code128 20mil: 6–90cm

Supported Codes

1D: UPC/EAN, Code128, GS1-128, Code39, Code32, Code93, Code11, 2of5, Codabar, MSI
2D: PDF417, Data Matrix, QR, Aztec, etc.

Positioning

GPS/A-GPS/GLONASS/BeiDou/Galileo/QZSS

Mode

GPS primary; BeiDou & GLONASS assist

Frequency

GPS: L1/L5; BeiDou: B1; GLONASS: L1/L5

Front Camera (Optional)

5MP, 2592×1944, fixed focus

Rear Camera

13MP, 4224×3136, PDAF, flash supported

Standards

ISO15693, ISO14443A/B, Mifare S50/S70, NFC

Frequency

13.56MHz

Read Range

0–5.5cm (ISO15693); 0–4cm (14443A); 0–1.5cm (ID card)

Wi-Fi

802.11a/b/g/n/ac; 2.4G/5G dual band

Cellular

GSM: 850/900/1800; TD-SCDMA: B34/B39; WCDMA: B1/B2/B5/B8; CDMA: BC0; TDD-LTE: B34/B38/B39/B40/B41; FDD-LTE: B1/B3/B5/B7/B8/B20/B28

OS

Android 11/Android14

Tools

Eclipse, Android Studio

Standard

10W adapter ×1, USB cable ×1

Optional

Case with strap; single/5-port dock for whole unit; 4-bay charger for batteries; handle; tempered film; holster; battery
