1.Dual Color Mould，IP67 Protection Level
2.Loadable Battery，Long time Battery Endurance
3.Wide Temperature range，-20 to 60°
4.Android14，upgrade support
5.Support multiple communication（shieldable/unloadable）BT、WIFI、GPS、4G/5G
6.FHD，Visible in Sunlight
7.Precise Location
Parameters | CPU | MTK6877,8ores，Frequency 2.4GHZ |
OS | Android 14 | |
Memory | 8GB+128GB/8GB+256GB | |
Screen | 8.0inch LCD screen, Resolution 800*1280 /1200*1920 optional | |
Brightness | 500/800 nit/1000 nit optional | |
Touch Panel | 10point touch 7H （Customizable anti-glare/glove touch/wet hand touch) | |
2G/3G/4G/5G | GSM:B2/3/5/8 WCDMA:B1/2/4/5/8 LTE:B1/2/3/4/5/7/8/12/13/20/25/26/28/34/38/39/40/41/66 NR:N1/2/3/5/7/8/12/20/25/28/38/40/41/66/77/78/79 | |
WIFI | 802.11a/b/g/n/ac/ax、 Frequency2.4G/5.8G/6G | |
Bluetooth | Bluetooth 5.3 (BLE) class1 Distance：10m | |
Location | GPS、Beidou、Galileo、GLONASS（1 from 4choices） | |
Camera | Front 5.0MP+Rear 13.0MP， Auto-focus LED | |
I/O | AUDIO * 1/Φ 3.5mm standard headphone jack | |
Type-A *1，USB2.0 | ||
Type-C *1，USB2.0 | ||
MINI HDMI*1 | ||
Network port * 1 (100Mbps network port) | ||
DC *1，5V/3A | ||
12Pin Pogo Pin *1 | ||
SIM card slot * 1 | ||
TF card slot * 1, supporting a maximum of 1TB | ||
Aviation plug * 2, (can be used for modification: car power supply, network port, serial port and other functions) | ||
Buttons | Built-in buttons | Power on/off button * 1, volume+-, custom button F/P |
Optional Modules | GNSS | Domestic single Beidou/RTK high-precision positioning/other customized modules |
Fingerprint | Standard fingerprint module/supports public security fingerprints/FBI fingerprints | |
NFC&LF/HF | Supports standard protocols such as 14443A/14443B/15693/125K/customization of ID cards and other special modules | |
Ultra-high frequency | PR9200， Distance 1:3-5 meters:R2000, Distance 2:10-15M meters | |
ID card | Second generation offline ID card module | |
Scanner | Optional 1D/2D QR code module/customized types of scanning modules | |
Battery Parameters | Capacity | Detachable polymer lithium-ion battery/3.8V 8500MAH |
Battery life | 8 hours (default 50% volume, playing 1080P local high-definition video) | |

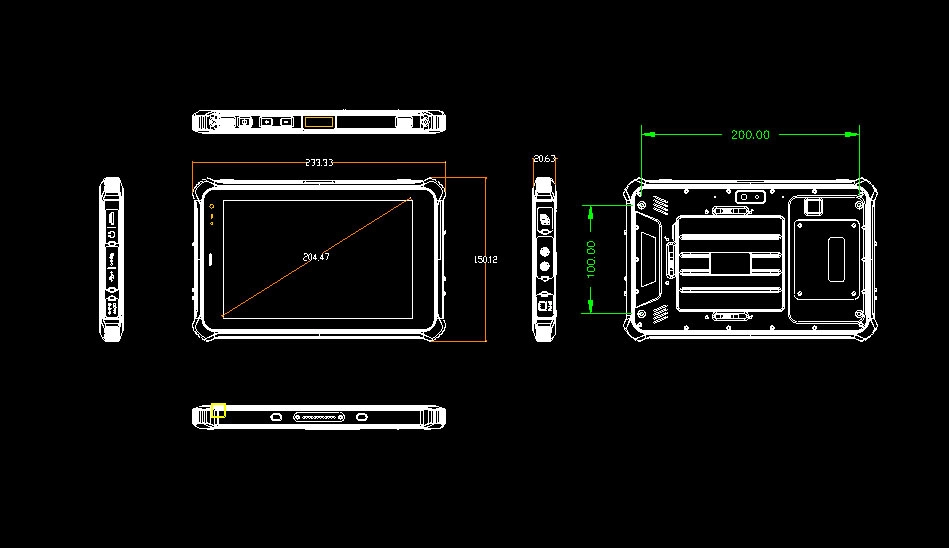

Dimension | Whole machine | 226*145*21.8mm ，760g ， black |
Reliability | Adapter | AC100V~240V/Output DC5V/3A |
Operating Temperature | -20 °C ~ 60 °C | |
Storage temperature | -30 °C ~ 70 °C | |
Humidity | 95% non condensing | |
Protective characteristics | IP67 | |
Drop height | 1.2-meter drop resistant composite wood floor | |
Software | Certification | CE, IP67、ROHS、UN38.3、EMC、3C, Ex-proof, energy-saving, MIL-STD-810H |
