PRODUCT SPECIFICATION

Specification	CPU	MTK8781, 8cores，Main Frequency 2.2GHZ
	OS	Android 13
	Memory	4GB+64GB/8GB+128GB
	Screen	8.0-inch LCD Screen, Resolution 8001280 /12001920 optional
	Brightness	500/800nit/1000nit optional
	Touch panel	10-point touch capacitive screen with a hardness of 7H (customized anti glare/glove touch/wet hand touch)
	2G/3G/4G	GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 TD-SCDMA:B38/B39/B40/B41 CDMA2000 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28A/ LTE-TDD: B38/B39/B40/B41
	WIFI	802.11a/b/g/n/ac、 2.4G/5.8G
	Bluetooth	Bluetooth 5.3 (BLE) class1 Transfer distance：10m
	Location	GPS、 Beidou, Galileo, GLONASS (three options out of four)
	Camera	Front 5.0MP+Rear 13.0MP, autofocus with LED light

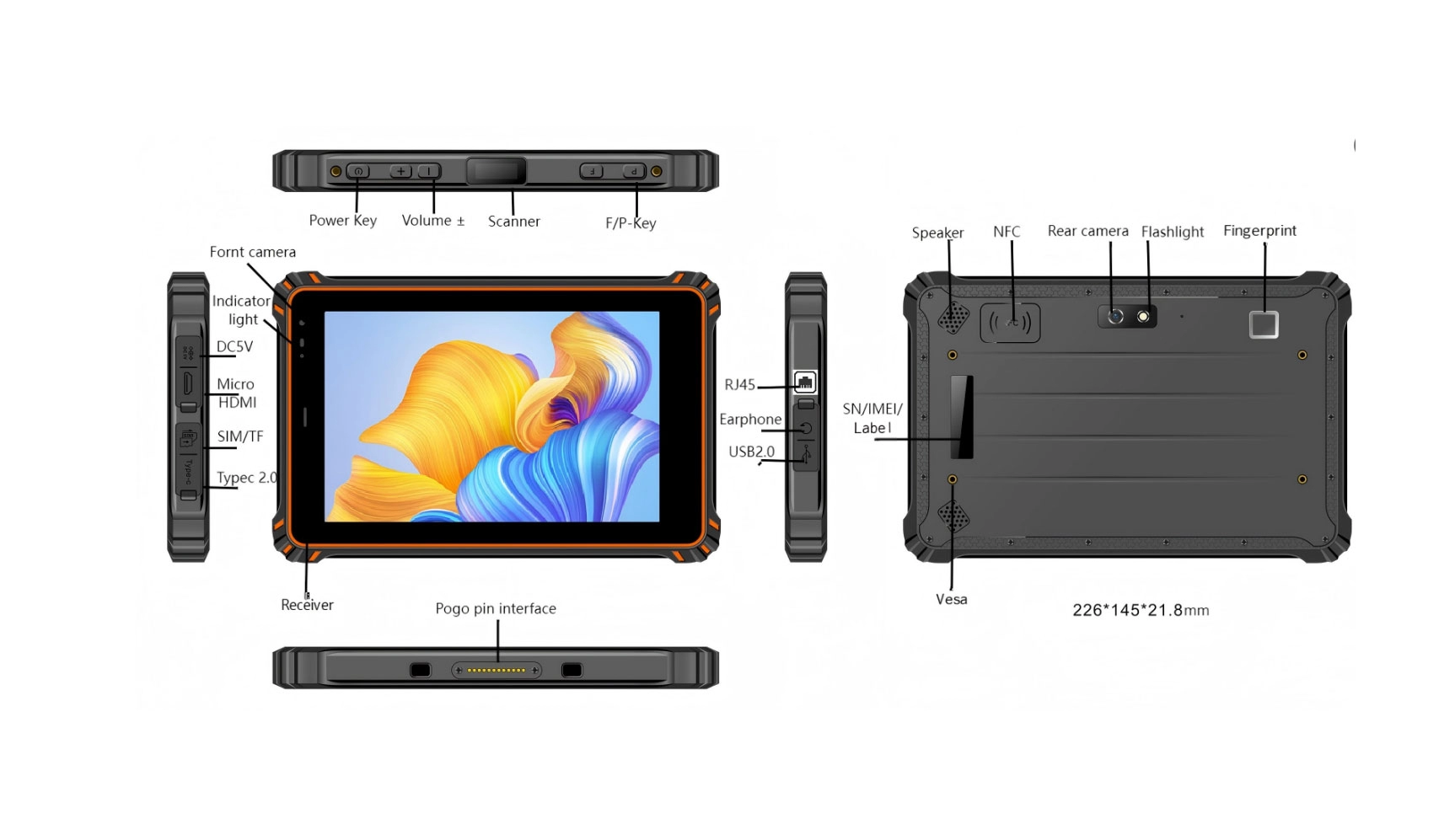

	I/O	AUDIO * 1/Φ 3.5mm standard headphone jack
		Type-A *1，USB2.0
		Type-C *1，USB2.0
		Micro HDMI*1
		Network port * 1 (100Mbps network port)
		DC *1，5V/3A
		12Pin Pogo Pin *1
		SIM card slot * 1
		TF card slot * 1, supporting a maximum of 1TB
Button	Built-in buttons	Power on/off button * 1, volume+-, custom button F/P
Optional Modules	GNSS	Domestic single Beidou/RTK high-precision position/customized modules
	Fingerprint	Standard fingerprint module/public security fingerprint/FBI fingerprint
	NFC&HF/LF	Support 14443A/14443B/15693/125K/customized ID card and other module
	UHF	PR9200，Distance 1：3-5 Meter: Embedded R2000, Distance 2：10-15M Meter: Embedded
	ID card	Second generation offline ID card module (built-in)
	Scanner	Optional 1D/2D QR code module/customized other types of scanning modules
Battery Parameters	Capacity	Built in polymer lithium-ion battery/3.8V 10000MAH
Battery Parameters	Battery life	10Hr(default 50% volume，1080P Local high-definition video）

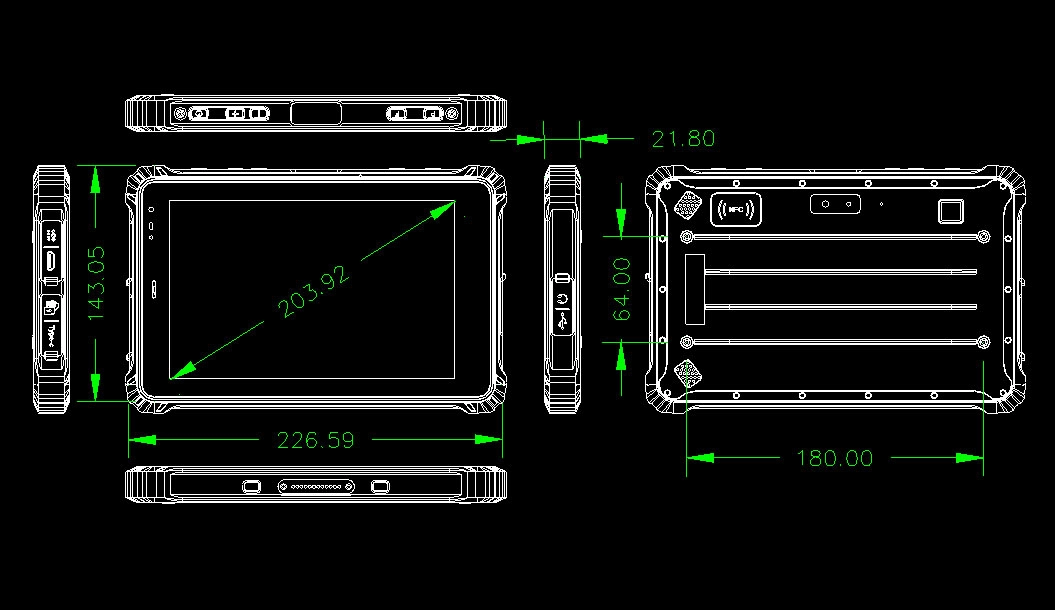

Dimension	Size and Color	22614521.8mm ，760g ，Black
Reliability	Adapter	AC100V~240V/Output DC5V/3A
	Operating Temperature	-20 °C ~ 60 °C
	Storage temperature	-30 °C ~ 70 °C
	Humidity	95% Non-condensing
	Protective Level	IP67
	Drop height	1.2Meter Drop resistant,Composite wood floor
Software	Certification	CE,IP67、ROHS、UN38.3、EMC、3C,Ex-proof，Engergy-saving，MIL-STD-810H
