PRODUCT SPECIFICATION

Specification	CPU	Intel Celeron N5100 CPU/4core/4threads 2.20GHz-2.80 GHz
	OS	Windows10/11
	Memory	8GB+128GB/16GB+128GB/16GB+256GB
	Screen	8.0inch LCD screen Resolutions 8001280 （12001920 optional）
	Brightness	500nit standard （800nit/1000nit optional）
	WiFi	802.11a/b/g/n/ac、 Frequency 2.4G/5.8G
	Bluetooth	Bluetooth 5.1 (BLE) class1 Transfer distance：10m
	Location	Support GPS Module
	Touch Panel	10point Touch,Hardness 7H
	Camera	Front 5.0MP+Rear 8.0MP

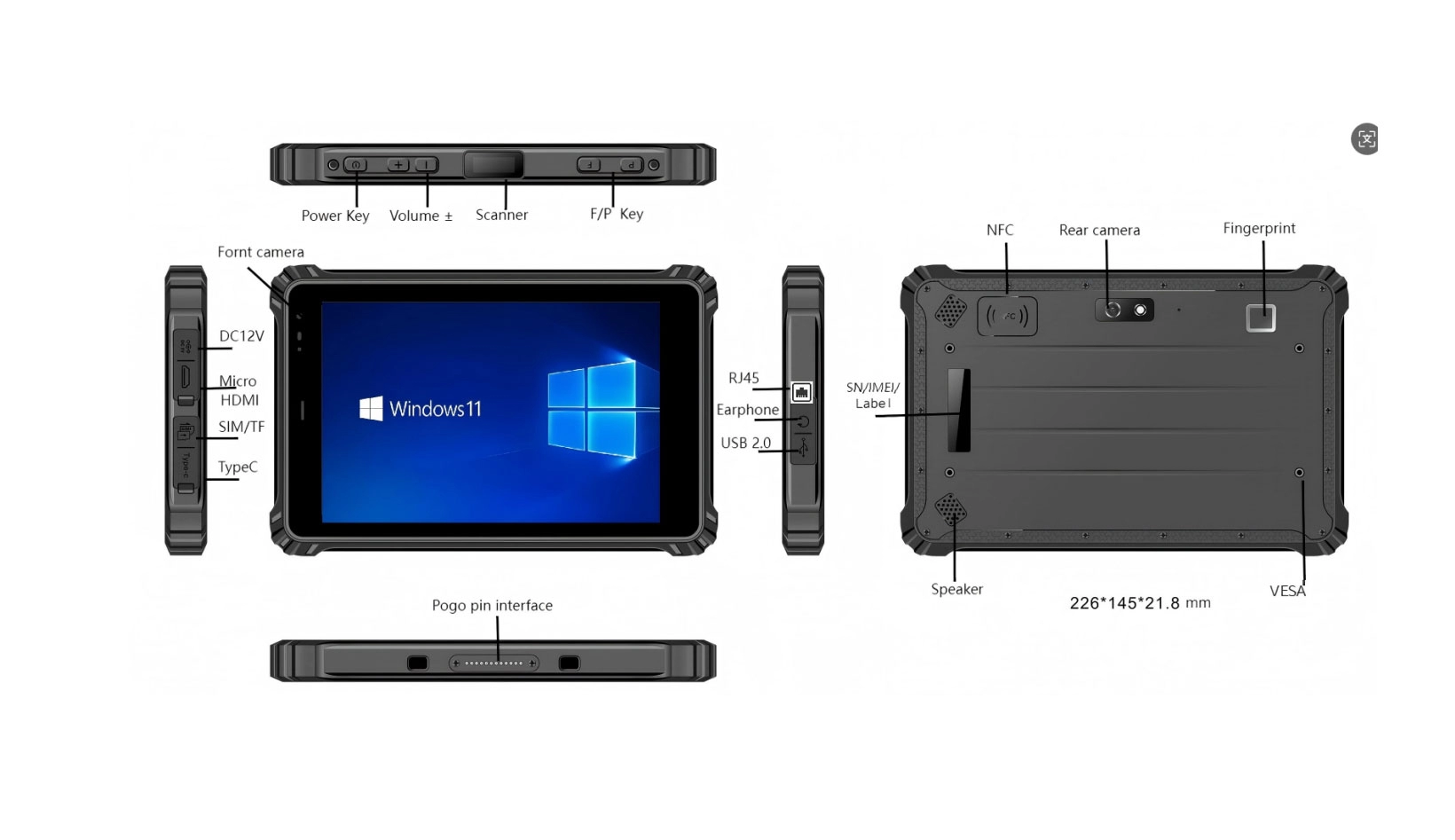

	I/O	AUDIO *1 /Φ3.5mm Standard earphone
		Micro HDMI*1
		Type-A *1,USB2.0
		Type-C *1,USB2.0
		Ethernet *1（(100Mbps network port)）
		DC*1,12V/3A
		12Pin Pogo Pin *1
		TF *1，Maximum 1TB
		SIM*1，
Optional Module	Communication	Optional with 4G/5G
	Fingerprint	Standard/customized public security fingerprint/FBI fingerprint and other special fingerprint modules
	NFC&HF&LF	Support 14443A/14443B/15693/125K Protocol/Support ID card or other module
	RFID	Support 14443A/14443B/15693, Support 125K Low frequency
	Scanner	1D/2D scanner modules/other customized modules
Whole Unit Parameter	Capacity	Polymer lithium-ion battery/7.6V/ 5000mAh/Embedded
	Battery life	8hrs(default 50%Volume，Playing 1080P Local High Resolution Video）
	Machine color	Black/Customized whole machine monochrome or dual color
	Dimension/weight	22614521.8mm 850g
Reliability	Adapter	AC100V~240V/output DC12V/4A
	Operating Temperature	-20°C ~ 60°C
	Storage temperature	-30°C ~ 70°C
	Humidity	95% Non-condensing
	Protective characteristics	IP67
	Drop height	1.2Meter drop-resistant,Composite wooden floor
	Certification	CE, IP67、ROHS、UN38.3、EMC、3C, MIL-STD-810H
Software	Operating system	Windows10/Windows11
