PRODUCT SPECIFICATION

Specification	CPU	Intel Core 12Generation I5-1235U/I7-1255U
	Memory	16GB+(128GB -2TB SSD)
	Display screen	10.1-inch LCD screen Resolution 8001280 （12001920 Optional）
	Brightness	500nit standard （800nit/1000nit optional）
	WiFi	802.11a/b/g/n/ac/ax、 Frequency 2.4G/5.8G /6G
	Bluetooth	Bluetooth 5.3 (BLE) class1 Transfer Distance：10m
	Positioning	Support GPS Module / Support domestic single Bei-dou
	Touch screen	10point touch panel,Hardness 7H
	Camera	Front5.0MP+ Rear8.0MP

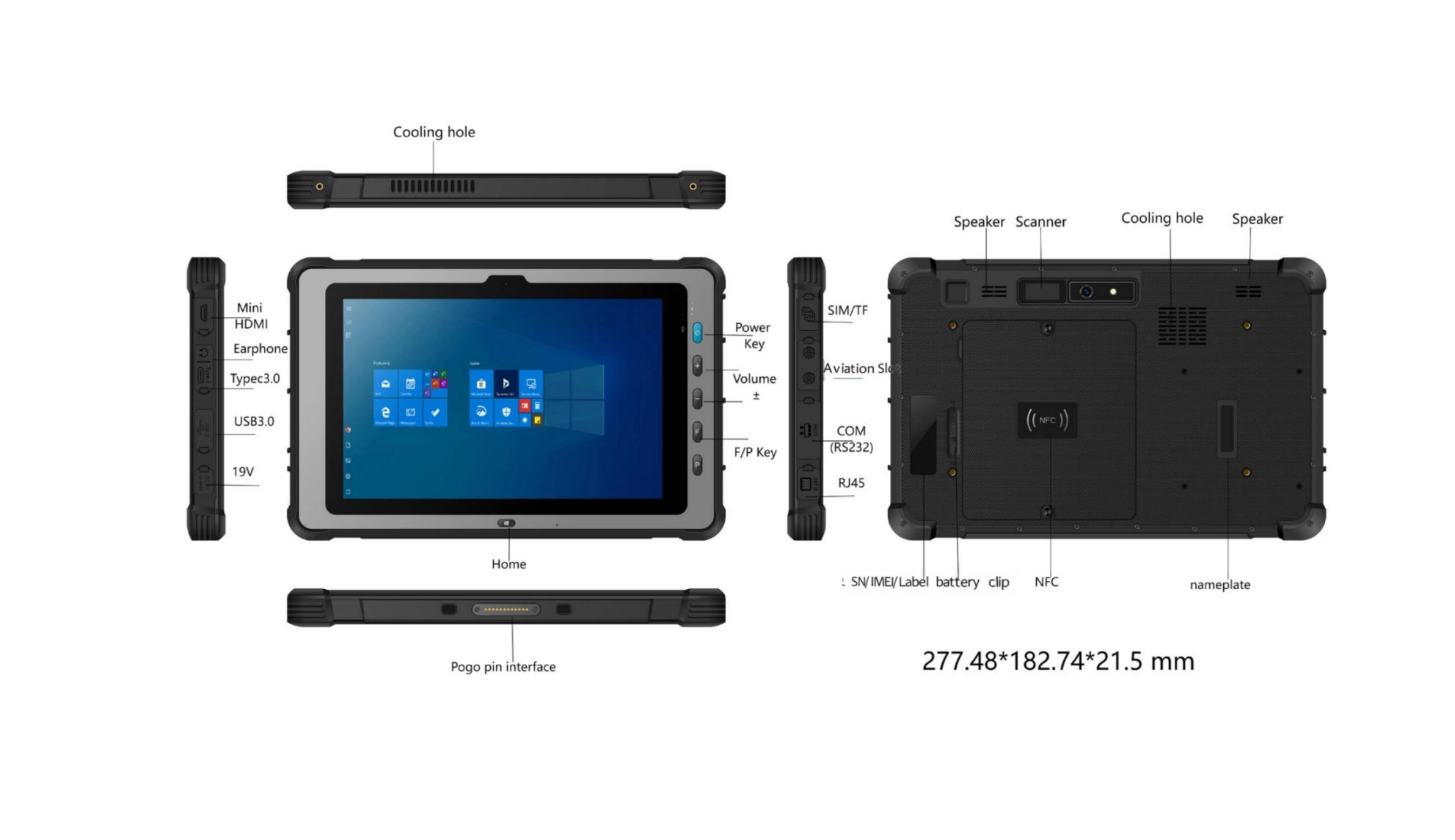

	I/O	AUDIO *1 /Φ3.5mm Standard earphone
		Micro HDMI*1
		Type-A *1,USB3.0
		Type-C *1,USB3.0
		Ethernet*1 (100M bps network port）
		DB9*1，RS232
		DC*1,19V/3.5A
		12Pin Pogo Pin *1
		TF*1，Maximum 1TB
		SIM*1，
Modules	Telecommunication	Optional 4G/5G
	Fingerprint	Standard/customized public security fingerprint/FBI fingerprint and other special fingerprint modules
	NFC&HF&LF	Support 14443A/14443B/15693/125K Protocol/Support ID card or other module
	RFID	Support 14443A/14443B/15693, Support 125K Low frequency
	Scanner	1D/2D scanner modules/other customized modules
Whole Unit Parameter	Capacity	Polymer lithium-ion battery/7.6V/ 10000mAh/Built-in
	Battery life	10hrs(default 50% volume，playing 1080P Local High Resolution Video）
	Machine color	Black/Customized whole machine monochrome or dual color

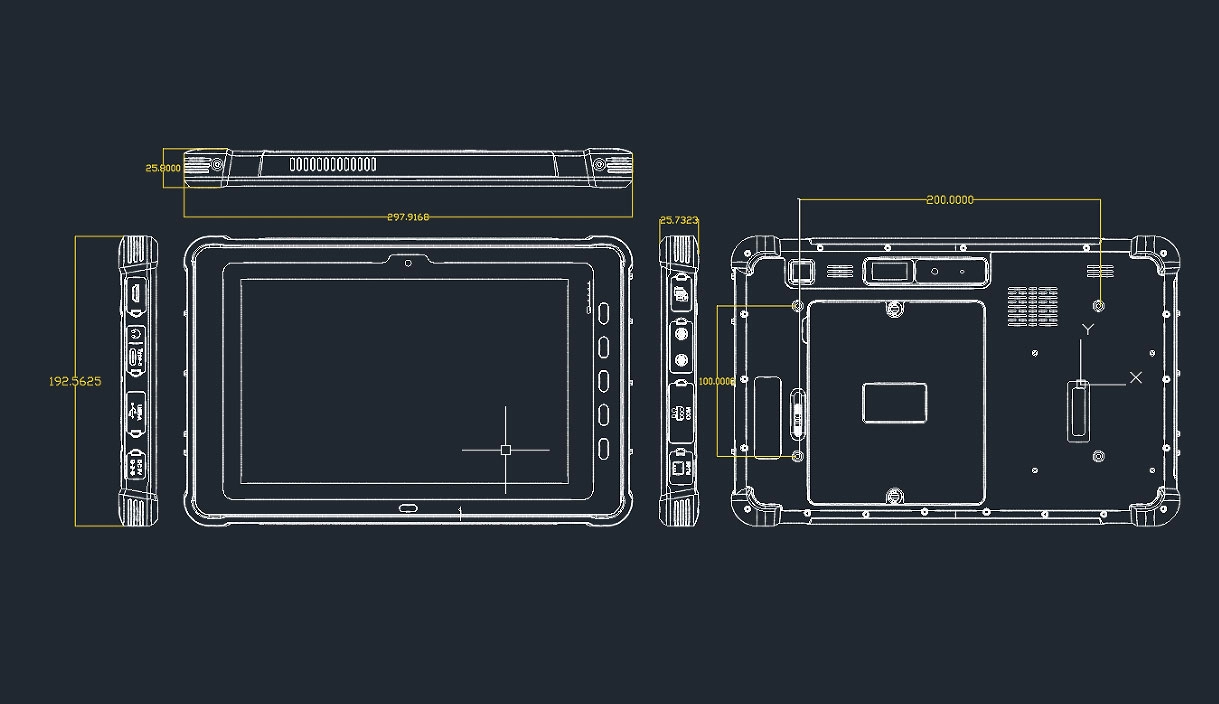

	Size/weight	277(W)182(D)21.8(H)mm 1450g
Reliability	Adapter	AC100V~240V/Output DC12V/4A
	Operating Temperature	-25°C ~ 60 °C
	Storage temperature	-30 °C ~ 70 °C
	Humidity	95% Non-condensing
	Protective characteristics	IP67
	Drop height	1.2Meter drop resistant, Composite Wooden Floor
	Certification	CE,IP67、ROHS、UN38.3、EMC、3C
Software	Operation System	Windows10/Windows11
