Support 12/13/14th Intel® Core（i3/i5/i7）
Support 4800MHz DDR5 Memory，Maximum 64.0GB
Support VGA、DP、HDMI、Dual display output，HDMI&DP support 4K @60Hz
2xRS-232，4xRS-232/422/485
3xUSB3.2，4xUSB3.0，2xUSB.0

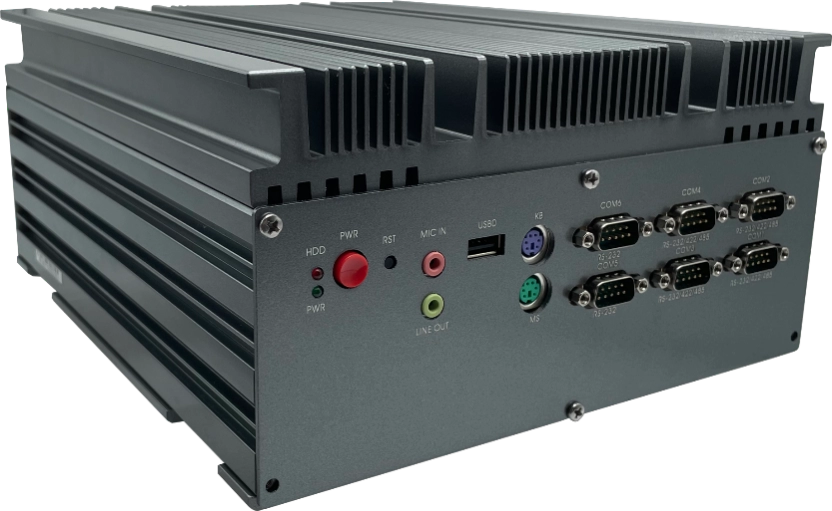

Aluminum alloy die-casting shell, passive cooling
| SYSTEM PARAMETER | CPU | 1 x LGA1700 CPU Socket, supporting 12/13/14th Intel® Core (i3/i5/i7), Intel® Pentium, Intel® Celeron processors (It is recommended to select a processor with a maximum TDP of 65W) |
| Chipset | Intel H610 | |
| Memory | 2 x 260Pin DDR5 SO-DIMM system memory expansion slots, supporting 4800MHz DDR5 system memory with a maximum capacity of 64.0GB | |
| Display | VGA (Max:1920x1200 @ 60Hz), DP (Max:4096x2304 @ 60Hz), HDMI (Max:4096x2160 @ 60Hz) display; supports arbitrary dual display output, HDMI and DP support dual 4K @60Hz ultra-high definition display output | |
| Expansion | 1 x Mini PCIE expansion slot (optional for Mini PCIE X1 devices or 4G SIM card devices), 1 x PCI card expansion slot | |
| Ethernet | 4 x Intel 10/100/1000Mbps network controllers (1 x I219-V, 3 x I211-AT), supporting Preboot Execution Environment (PXE) and Wake-on-LAN (WOL) functions | |
| Audio | 1 x Ø3.5 PhoneJack audio output interface, 1 x Ø3.5 PhoneJack MIC interface | |
| Storage | 1 x 7+15Pin SATA III interface (2.5" SATA hard drive bay); 1 x M.2 2280 (SATA/NVMEx4) expansion slot; 1 x 7Pin SATA III interface | |
| USB | 3 x USB3.2 interfaces, 4 x USB3.0 interfaces, 2 x USB2.0 interfaces | |
| Serial Port | 2 x RS-232 standard DB9 serial ports (COM5, COM6); 4 x RS-232/422/485 serial ports (COM1~COM4); RS-485 supports hardware automatic data flow control. All the above serial ports are non-isolated(Customization of 4 x RS-232, COM7~COM10 is supported) | |
| Other Interfaces & Functions | 1 x PS/2 mouse/keyboard interface; Hardware forced power-on automatic boot function (Users can set the pin status of PSJ1 as needed); 256-level watchdog timer; On-board reserved 1 x LPT (parallel port) pin header, 1 x 16-Bit GPIO pin header, 1 x USB2.0 Wafer pin header | |
| Power Input | DC 9V～36V power input (double-layer Phoenix terminal) | |
| Mechanical | Housing Composition | Aluminum alloy die-cast housing, painted front and rear panels |
| Color | Iron Grey | |

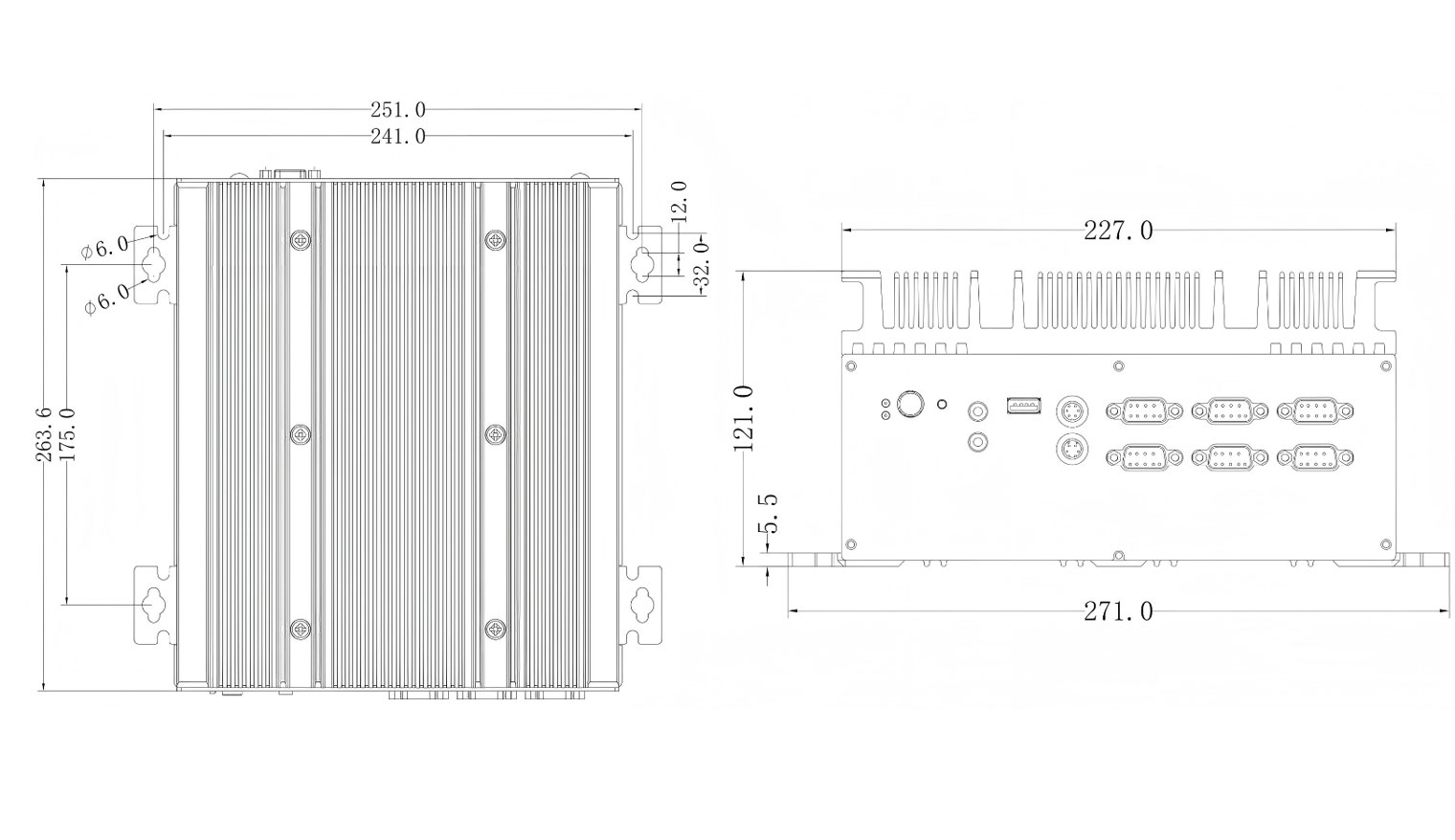

| Dimension | 271mm x 263.6mm x 121mm (W x D x H) | |
| Environment | Operation Environment | Temperature: -20℃～60℃ (Wide-temperature storage devices required)Humidity: 5%～95% (Non-condensing) |
| Storage Environment | Temperature: -40℃～80℃Humidity: 5%～95% (Non-condensing) |
