Support12/13/14 th Intel® Core（i3/i5/i7）
Support 4800MHz DDR5 Memory，64.0GB
Support VGA、DP、HDMI Display、Dual display output，HDMI&DP support 4K @60Hz
2xRS-232，4xRS-232/422/485
3xUSB3.2，4xUSB3.0，2xUSB.0
Aluminum alloy die-casting shell, passive cooling
| SYSTEM PARAMETER | CPU | 1xLGA1700 CPU Socket,supporting 12th/13th/14th generation Intel Core(i3/i5/i7),Intel Pentium,and Intel Celeron processors(it is recommended to use processors with a maximum TDP of65W) |
| chipset | Intel H610 | |
| System memory | 2x260Pin DDR5 SO-DIMM system memory expansion slots,supporting 4800MHz DDR5 system memory,with a maximum memory capacity of 64.0GB | |
| Display output | Supporting displays of VGA(Max:1920x1200 @60Hz).DP(Max:4096x2304@60Hz).and HDMI(Max:4096x2160@60Hz).it can achieve any dual display output,with HDMI and DP supporting dual 4K @60Hz ultra-high-definition display output | |
| Extended interface | 1xMini PCIE expansion slot(optional,supports Mini PCIE X1 device or 4G SIM card device),2xPCI card expansion slots | |
| Ethernet | 4x Intel10/100/1000Mbs network controllers (I219-Vx1,I211-ATx3),supporting network boot (PXE)and wake-on-LAN(WOL)functions | |
| Audio | 1xΦ3.5 PhoneJack audio output interface,1xΦ3.5PhoneJack MIC interface | |
| Storage | 1x7+15Pin SATAIII interface(2.5"SATA hard drive slot);1xM.2 2280(SATA/NVMEx4)expansion slot;1x7Pin SATAIII interface | |
| USB | 3xUSB3.2 interfaces,4xUSB3.0 interfaces,2xUSB2.0 interfaces | |
| Serial port | 2x RS-232 standard DB9 serial ports(COM5,COM6);4xRS-232/422/485 serial ports(COM1~COM4):RS-485supports automatic hardware data flow control.All the above serial ports are non-isolated serial ports(support customization for4xRS-232,COM7~COM10) | |
| Other interfaces and functions | 1xPS/2mouse/keyboard interface:hardware-enforced power-on automatic boot function(users can set the PSJ1 pin status as needed);256-level watchdog timer:1xLPT(parallel port)pin reserved on the board,1x16-Bit GPIO pin,1xUSB2.0 wafer socket | |
| Power output | DC9V~36V power input(double-layer Phoenix terminal) | |
| Mechanical | Composition of the shell | Aluminum alloy die-casting shell,with painted front and rear panels |
| Color | iron gray | |

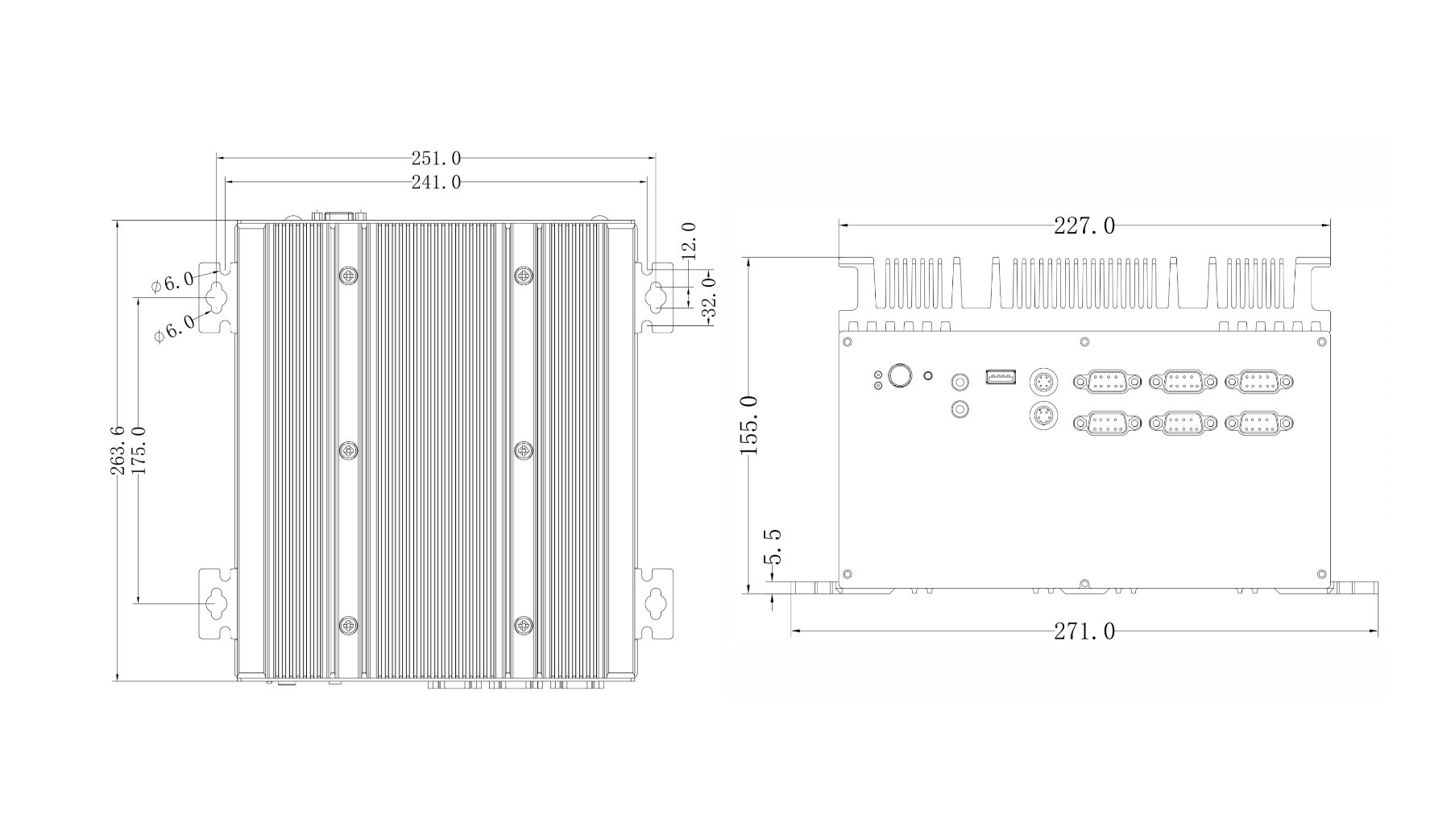

| Size | 271mm×263.6mm×155mm(W×D×H) | |
| Environment | Working environment | Temperature:- 20°C to 60℃(requires wide-temperature storage device)Humidity:5%to 95%(non-condensing) |
| Storage environment | Temperature:-40℃ to 80℃Humidity:5%to 95%(non-condensing) |
