RT-10Z

OS

Win10/11 Home IoT or Pro

Memory

8GB+128GB/up to 2TB

Screen

10inch LCDscreen, Resolution 800*1280 /1200*1920 optional

Brightness

500/800nit/1000 nit optional

Touch Panel

10point touch7H（Customized anti-glare/glove touch/wet hand touch)

2G/3G/4G/5G

LTE FDD: B1/B3/B5/B7/B8/B20；

LTE TDD: B38/B40/B41； WCDMA: B1/B5/B8；GSM: B3/B8

WIFI

802.11a/b/g/n/ac/ax, Frequency2.4G/5.8G/6G

Bluetooth

Bluetooth 5.3(BLE) class1Distance：10m

Location

GPS, Beidou, Galileo, GLONASS（1 from 4choices）U-Blox M8N

Camera

Front 5.0MP+Rear 8.0MP, Auto-focus LED

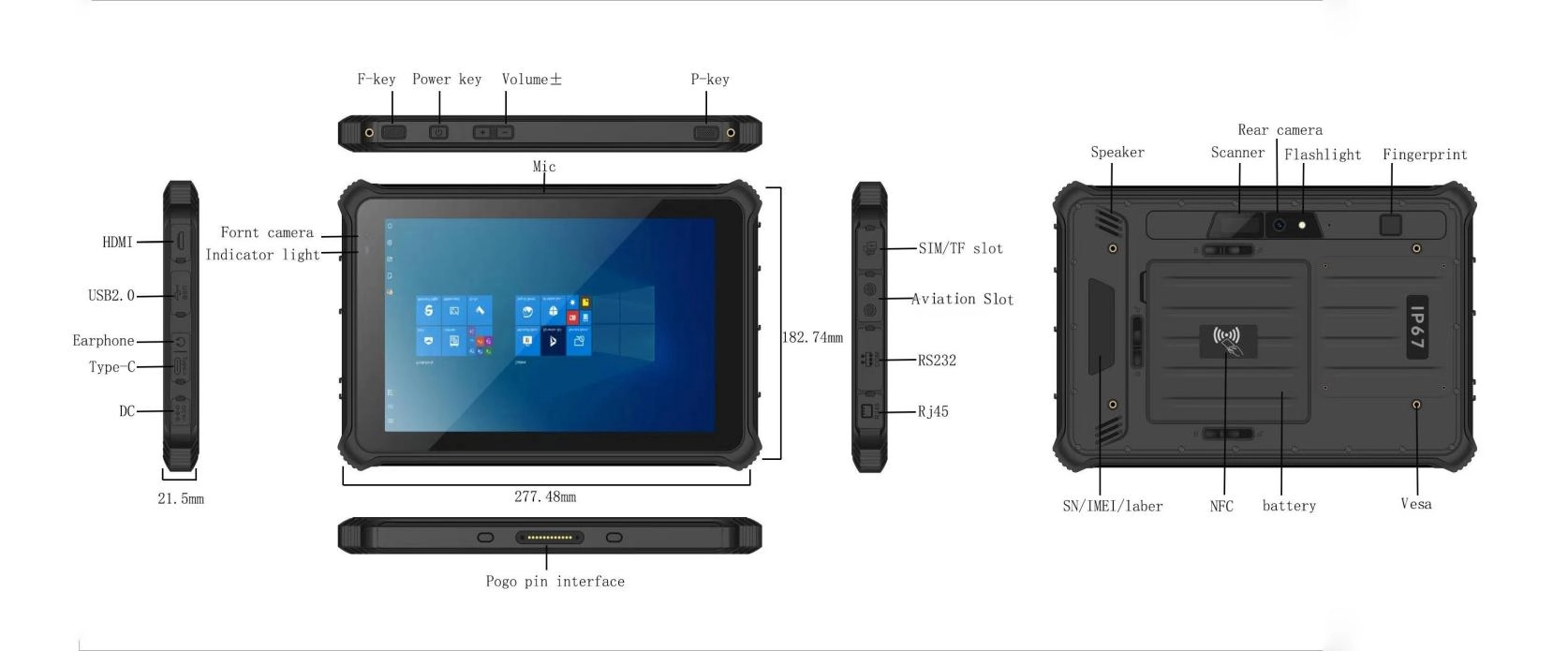

I/O

AUDIO * 1/Φ 3.5mm standard headphone jack

*1, Type-C USB3.0 Support OTG

*1, Type-A USB3.0

MINI HDMI*1

*1, RJ45, 1000Mbps

DC *1, 12V/4A

12Pin Pogo Pin *1

SIM card slot * 1

TF card slot * 1, supporting a maximum of 256GB

Aviation plug * 2, (can be customized: car power supply, network port, serial port and other functions)

Buttons

Built-in buttons

Power on/off button * 1, volume+-, custom button F/P

Optional Modules

GNSS

Domestic single Beidou/RTK high-precision positioning/other customized modules

Fingerprint

Standard fingerprint module/supports public security fingerprints/FBI fingerprints

NFC&LF/HF

Supports standard protocols such as 14443A/14443B/15693/125K/customization of HF and other special modules

Ultra-high frequency

PR9200, Distance 1:3-5 meters:R2000, Distance 2:10-15M meters

ID card

Second generation offline ID card module

Scanner

Optional 1D zebra SE655/2D zebra SE2707 QR code module/customized types of scanning modules like N1

Battery Parameters

Capacity

Main Battery: 5000mAh, 7.6v lithium- ion battery, Removable, endurance 8h（1080P Video + LCD, 50% Brightness）Support hot Plug Hot-Swappable

Sub-Battery: 800mAh , 7.6v lithium- ion battery

Battery life

8 hours (default 50% volume, playing 1080P local high-definition video)

Dimension

Whole machine

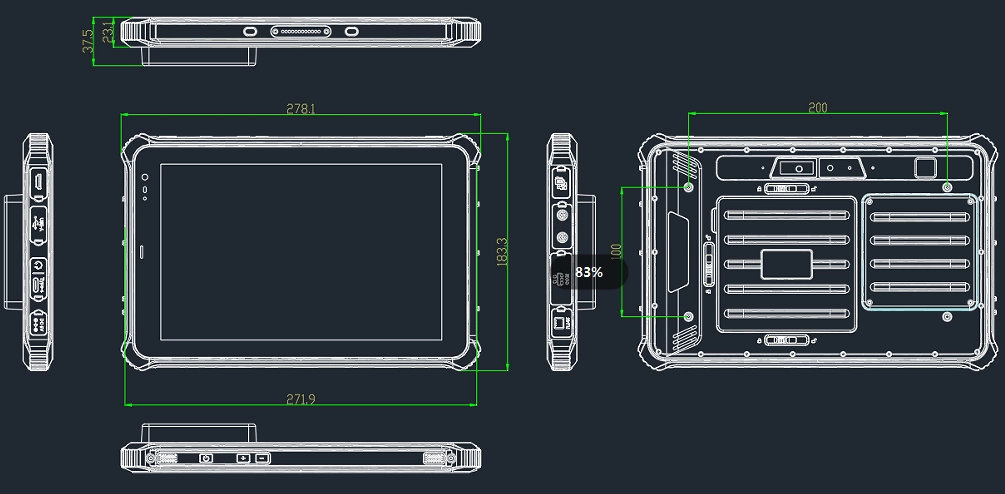

277.48*182.74*21.5, 1150g , black

Reliability

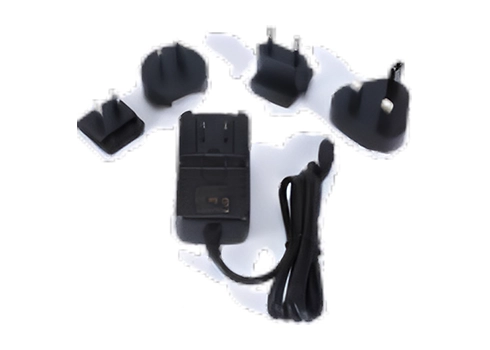

adapter

AC100V~240V/Output DC12V/4A

Operating Temperature

-20 °C ~ 60 °C

Storage temperature

-30 °C ~ 70 °C

Humidity

95% non condensing

Protective characteristics

IP67

Drop height

1.2-meter drop resistant composite wood floor

Software

Certification

CE, IP67, ROHS, UN38.3, MSDS, EMC, 3C, Ex-proof,energy-saving, MIL-STD-810H
