Portable equipment diagnostics often takes place far from a desk. A technician may need to connect to a machine, read operating data, run diagnostic software, record a fault, take photos, and send the results to a service team. In these situations, a conventional laptop can be cumbersome, while a consumer tablet may not provide the interfaces or physical protection required for field work.

A Windows rugged tablet offers a different approach. It combines a familiar Windows software environment with a compact form factor and hardware designed for demanding working conditions. For maintenance teams and equipment service providers, this can make diagnostic work more mobile without forcing them to completely change the software tools they already use.

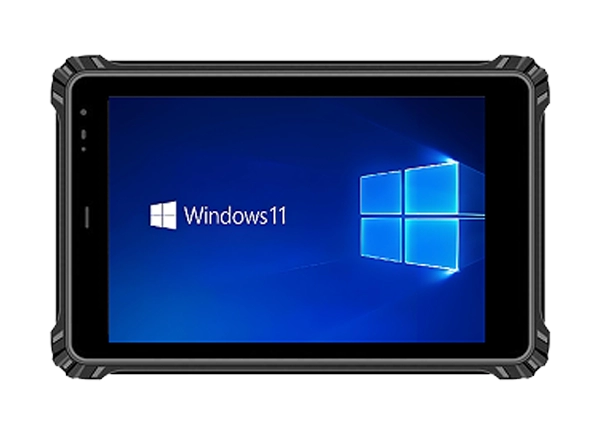

The RT-08NF 8-inch Windows10/11 Rugged Tablet is designed around this type of use. It combines an Intel Celeron N5100 processor, Windows 10/11, multiple wired and wireless interfaces, GPS support, optional cellular communication, and IP67 protection in an 8-inch enclosure.

Why Windows Matters for Portable Equipment Diagnostics

The first consideration is often software compatibility.

Many equipment manufacturers, service companies, and maintenance departments already use Windows-based diagnostic programs. These applications may have been developed for PC environments and can rely on familiar Windows interfaces, drivers, communication tools, or peripheral connections.

Moving this workflow to an Android-only device can require additional software development or a completely different application. A Windows rugged tablet can reduce that transition by allowing technicians to continue working with Windows-compatible diagnostic software.

The RT-08NF runs Windows 10 and Windows 11 and uses an Intel Celeron N5100 processor with four cores and four threads, operating from 2.20GHz to 2.80GHz. Available memory configurations include 8GB + 128GB, 16GB + 128GB, and 16GB + 256GB.

This hardware configuration is aimed at practical mobile computing rather than simply displaying information. The appropriate memory and storage configuration can be selected according to the diagnostic application, local data requirements, and deployment workflow.

Connecting the Tablet to Diagnostic Equipment

A diagnostic tablet becomes much more useful when it can communicate with the equipment being tested.

Different machines may use different connection methods. Some diagnostic systems rely on USB accessories, wired Ethernet, or dedicated interfaces. Others require wireless communication or a combination of local connections and cloud-based software.

The RT-08NF provides USB Type-A, USB Type-C, a 100Mbps Ethernet port, Micro HDMI, a 12-pin Pogo Pin, and a 3.5mm audio interface.

The Ethernet port is particularly useful for diagnostic environments where a stable wired network connection is preferable. USB ports can be used with compatible peripherals, data cables, storage devices, or other diagnostic accessories, depending on the application.

The Pogo Pin interface also provides an option for customized docking or accessory solutions. This can be useful when a company wants to integrate the tablet into a fixed diagnostic station while retaining the ability to remove the tablet for mobile work.

Before deployment, however, the communication interface and protocol requirements of the equipment should always be verified. A physical port alone does not guarantee compatibility with a specific machine.

A Compact Screen for On-Site Diagnostics

A diagnostic workstation does not always need a large display.

Technicians working around machinery may have limited space and may need to hold the tablet while checking equipment. An 8-inch screen provides more display area than a typical handheld terminal while remaining smaller than a conventional laptop.

The RT-08NF uses an 8.0-inch LCD display with an 800 × 1280 standard resolution, while a 1200 × 1920 configuration is available. Brightness is rated at 500 nits as standard, with 800-nit and 1000-nit options.

The higher-brightness configurations can be useful when diagnostic work moves between workshops, plant floors, service vehicles, and outdoor locations. A screen that remains readable under stronger ambient light reduces the need to find a shaded area simply to check a diagnostic screen.

The 10-point touch panel has 7H hardness, providing a touchscreen designed for regular operational use. For applications where users interact directly with software controls, this allows the tablet to function more like a compact Windows workstation than a simple information display.

Recording Diagnostic Findings at the Equipment

Diagnosis rarely ends when a fault code appears.

A technician may need to document the condition of a component, record measurements, photograph a damaged part, or attach notes to a service report. Having these functions on the same device can simplify the workflow.

The RT-08NF includes a 5MP front camera and an 8MP rear camera. The rear camera can be used for documenting equipment conditions, labels, components, warning indicators, or other visual information relevant to a service record.

For example, a technician inspecting a machine could open a Windows diagnostic application, review the equipment status, photograph a damaged component, and complete the service record on the same tablet. The resulting information can then be transferred through the available network connection according to the company's software workflow.

This is a practical advantage of combining computing and documentation capabilities in one rugged device.

Wireless Connectivity for Mobile Service Teams

Portable diagnostics often involves moving between locations.

A technician may diagnose equipment inside a facility, then move to another building, service vehicle, or remote site. Wi-Fi may be available in some locations but not others.

The RT-08NF supports 802.11a/b/g/n/ac Wi-Fi at 2.4GHz and 5.8GHz, as well as Bluetooth 5.1. Optional 4G or 5G communication is available for deployments that require cellular connectivity.

This gives businesses several options for connecting diagnostic applications. Wi-Fi can be used within facilities, while optional cellular connectivity can support technicians working away from company networks.

Bluetooth can also support compatible wireless peripherals where the diagnostic workflow requires them.

For multi-location deployments, cellular band compatibility should be confirmed against the target network before selecting the final configuration.

GPS Can Add Location Information to Diagnostic Records

Some service operations involve equipment distributed across large facilities, construction sites, transportation networks, energy installations, or other geographically separated locations.

In these cases, location can become useful information within a service record.

The RT-08NF supports a GPS module. When integrated with suitable software, GPS information can help associate inspection or diagnostic records with a particular location.

For example, a maintenance organization managing equipment across multiple sites could use location information alongside equipment IDs, service records, photographs, and diagnostic results. This can make it easier for service teams to understand where a particular record was created.

GPS should not be treated as a replacement for an asset identification system, but it can provide an additional layer of information when location matters.

Rugged Protection for Equipment Service Environments

Portable diagnostic work can expose electronic devices to conditions that are difficult for ordinary laptops and tablets.

Technicians may work near machinery, outdoors, in maintenance areas, or in locations where dust, moisture, temperature changes, and accidental drops are possible.

The RT-08NF has an IP67 protective rating and is designed for a stated 1.2-meter drop resistance on a composite wooden floor. Its operating temperature range is -20°C to 60°C, while the storage temperature range is -30°C to 70°C. The product also specifies 95% non-condensing humidity.

These characteristics are important for equipment service because the diagnostic computer needs to remain available when the surrounding environment is less controlled than an office.

The device also carries certifications including CE, IP67, RoHS, UN38.3, EMC, 3C, and MIL-STD-810H.

Battery Life and Mobile Diagnostic Sessions

A diagnostic tablet is only useful when it can stay operational during a service task.

The RT-08NF uses an embedded 7.6V 5000mAh polymer lithium-ion battery. The stated battery life is approximately eight hours under the manufacturer's test condition of 50% volume while playing 1080P local high-resolution video.

Actual diagnostic runtime will vary according to processor load, display brightness, wireless communication, connected peripherals, and software usage. Even so, the battery configuration is designed for extended mobile operation rather than short periods of occasional use.

For service teams, this means battery planning can be incorporated into the deployment process instead of treating the tablet as an office computer that is always connected to a power outlet.

Optional Identification and Scanning Functions

Equipment diagnostics sometimes begins with identifying the correct machine, component, or asset.

The RT-08NF supports optional NFC, HF/LF, RFID, and 1D/2D scanning modules. It can support protocols including 14443A, 14443B, 15693, and 125K, depending on the selected configuration.

This provides opportunities to connect equipment identification with diagnostic workflows.

A technician could scan an equipment label, retrieve its corresponding service record, run the required diagnostic application, and then save the new findings against the same asset. The exact workflow depends on the customer's software and identification system, but the hardware provides several options for building such a process.

This is particularly useful when a company manages a large number of similar machines and wants to reduce manual asset-number entry.

Choosing the Right Configuration for Diagnostic Work

Not every diagnostic project needs the same tablet configuration.

A basic deployment may require Windows 11, standard memory, Wi-Fi, USB, and Ethernet. A mobile service team may additionally need 4G or 5G. A project involving asset identification may benefit from NFC, RFID, or a barcode scanner. Outdoor service teams may prefer a higher-brightness display and GPS.

Memory and storage should also be selected according to the software workload. The available 8GB and 16GB configurations provide flexibility for different Windows applications and data requirements.

This configuration-based approach is more practical than selecting a tablet simply because it has a long list of specifications. The important question is whether the hardware supports the actual diagnostic process from equipment identification to final service reporting.

A Practical Platform for Portable Equipment Diagnostics

Fushizk Technology Co.,Ltd develops rugged computing products with a focus on embedded systems, AI algorithm optimization, and wireless communication technology. The company integrates R&D, production, and sales and offers rugged tablet solutions covering Android and Windows platforms, as well as specialized products for vehicle-mounted, medical, explosion-proof, and military-grade applications.

For portable equipment diagnostics, the value of a rugged Windows tablet comes from how its computing platform, interfaces, connectivity, and physical protection work together.

The RT-08NF 8-inch Windows10/11 Rugged Tablet provides a compact Windows platform with Intel Celeron N5100 processing, up to 16GB memory, expandable storage, Ethernet and USB connectivity, optional 4G/5G, GPS support, scanning and identification modules, IP67 protection, and a working temperature range of -20°C to 60°C.

For technicians and service organizations, this combination can support a more mobile diagnostic workflow without giving up the Windows environment used by many existing business and equipment applications.

The result is not simply a smaller computer. With the right configuration and compatible diagnostic software, the RT-08NF can serve as a practical field terminal for checking equipment, documenting problems, connecting to service systems, and completing maintenance tasks where a standard office PC is not convenient.
